Extractor 8F self-turning,programautomatic,27,5x48,barrel 95,370W

Product number: 4400
For the price please send us an enquiry

Type of exctrator: Self-turning extractor
Number of frames : 8
Drive: Full automatic speed control 370 W/230 V
Diameter - inner/outer: 95 / 98 cm
Max frame size: 26,5 x 48 cm
Material: Stainless steel W.Nr. 1.4301 / AISI 304

Cassette size: 27,5 x 40 x 4,5 cm
Drive: electric motor 370W / 230V with full electronic speed control
The internal diameter of the barrel: 95 cm

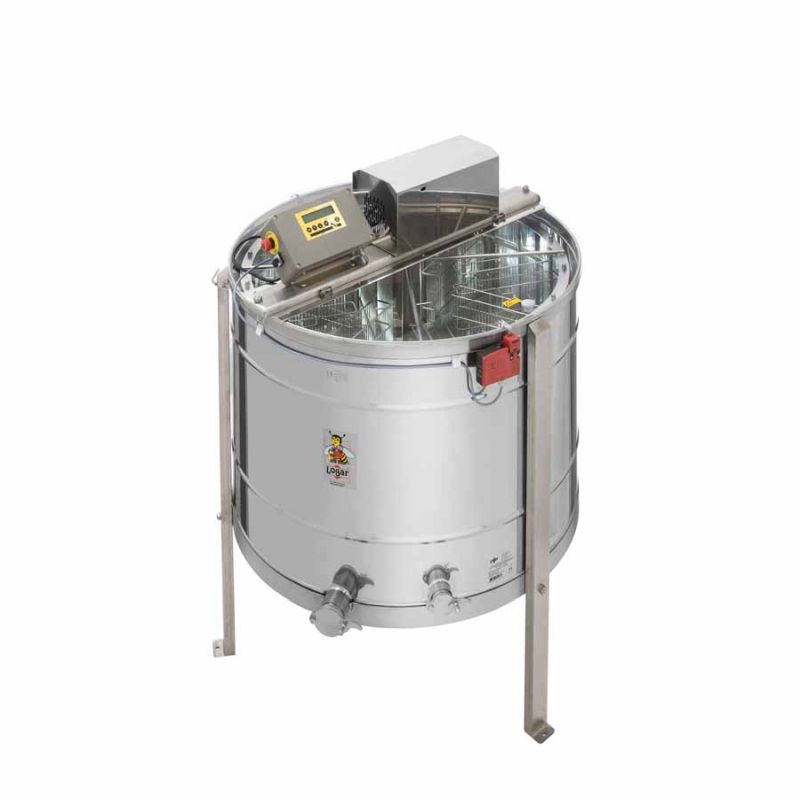

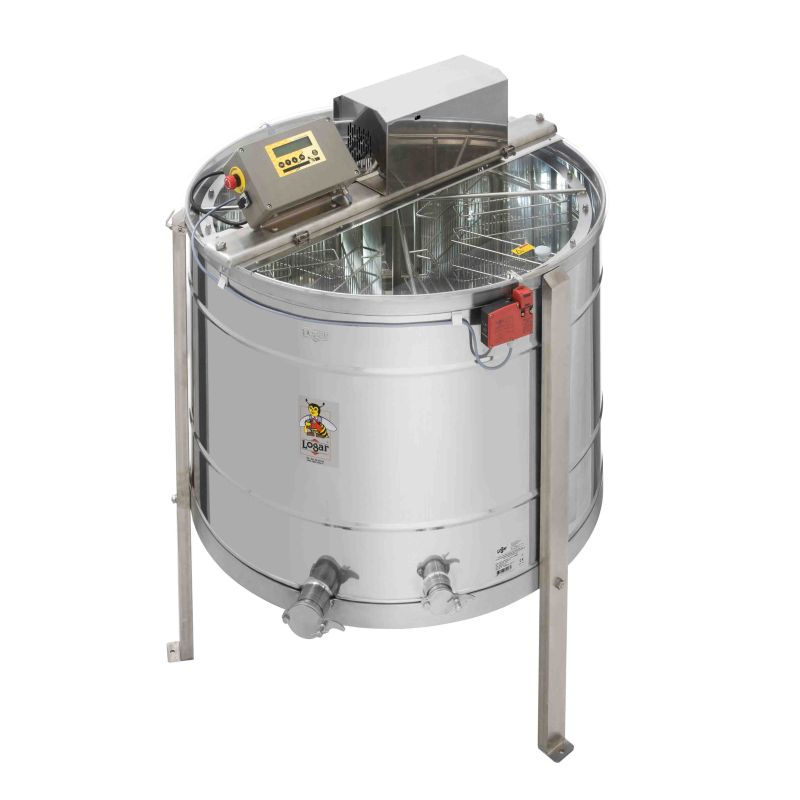

The 8 frames self-turning honey extractor is powered by an electric motor 370W / 230V with full electronic speed control. A safety lock is built-in, which stops the motor if the lid of the extractor is opened during the operation. Modern technology enables the innovative manufacturing of the bottom of the extractor. The bottom of the extractor is welded without any inner edges and is inclined towards the tap. Extractor has two welded stainless taps (6/4'' and 2''). Stainless tap 2'' is built in at the lowest point so all the honey can drain out of the extractor. All parts of a honey extractor which come in contact with honey are made of materials appropriate for managing foods. The lid is made of transparent acrylic glass.

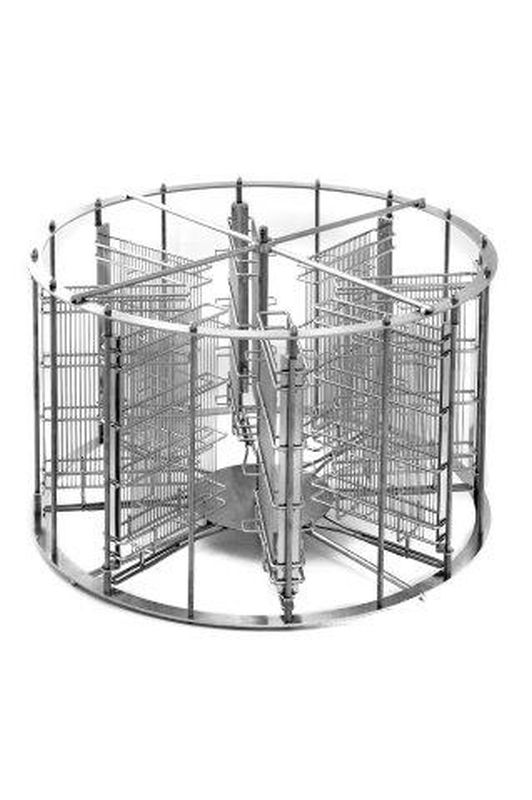

The basket cassettes are made of vertical wires of corresponding density, so the honeycomb is not damaged during the extraction. They are connected by a special mechanism. The wire cassette prevents the honey from being clogged in the cassette during the extraction. Therefore, the frames are dry after the extraction. With an additional charge, cassettes for frames 28 cm high can be made.

The extractor can be disassembled and carried through a door 80 cm wide.

Enables extracting honey from beehive frame with the height up to 26,5 cm and the length of the upper bar of 48 cm.

Automation enables the entire process of extraction independent, and the user can focus on other tasks during that time. Managing is simple using a digital two-line LCD display and a foil keyboard. Eight different programs can be set and saved. In each program, eight different times, directions and rotation speeds can be programmed. Basic extraction programs are already preset and can be changed any time, or new programs can be additionally set and saved. The extractor is silent, reliable and has a compact design.

Guarantee: 2 years
Type: LTA 8SS

Accessories:
- The 12V DC-230V AC, 600W (Art. 4627) converter enables the operation of the extractor with a 12V DC battery if an electrical supply of 230V is not available.
- It is recommended that the bottom of the extractor is heated (Art. 7126) since it will be a lot easier to extract honey for several days in a row or for cleaning the extractor. By heating the bottom of the extractor, honey drains faster out of the extractor and also through a strainer.
- By mounting rubber pads (Art. 7769) on the legs, the extractor will not slide so easily.
  • Type of exctrator: Self-turning extractor
  • Number of frames : 8
  • Drive: Full automatic speed control 370 W/230 V
  • Diameter - inner/outer: 95 / 98 cm
  • Max frame size: 26,5 x 48 cm
  • Cassette size: 27,5 x 40 x 4,5 cm
  • Height of drum without/with drive: 75 / 97 cm
  • Common height with legs / with drive: 111 / 135 cm
  • Height from ground to tap: 37 cm
  • Taps / Ø: 1x Ø 42 mm + 1x Ø 53 mm
  • Material: Stainless steel W.Nr. 1.4301 / AISI 304
