Extractor 4F self-turning,motor 110W, barrel 76

Product number: 4200
For the price please send us an enquiry

Type of extractor: Self-turning extractor
Number of frames : 4/4
Drive: Motor 110W/230V
Diameter - inner/outer: 76 / 79 cm
Max frame size: 26,5 x 48 cm
Suitable for: AZ, Langstroth 1/1, Langstroth 2/3, Typ B, Gerstung, etc.
Cassette size: 27,5 x 40 x 4,5 cm

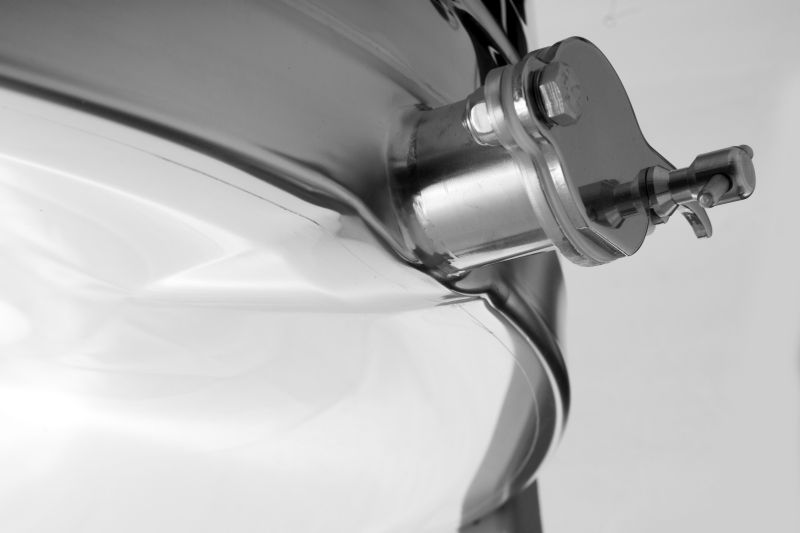

Tap: built in at the lowest point
Bottom: welded without any inner edges and inclined towards the tap
Material: Stainless steel W.Nr. 1.4301 / AISI 304
I: Made in Europe (Slovenia)

Cassette size: 27,5 x 40 x 4,5 cm
Drive: electric motor 110W / 230V
The internal diameter of the barrel: 76 cm

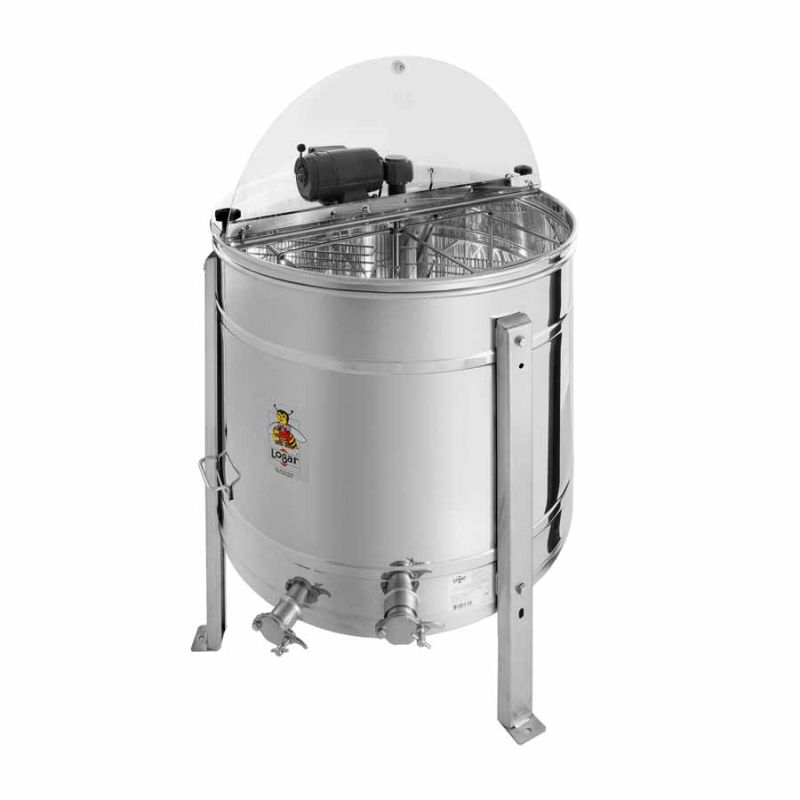

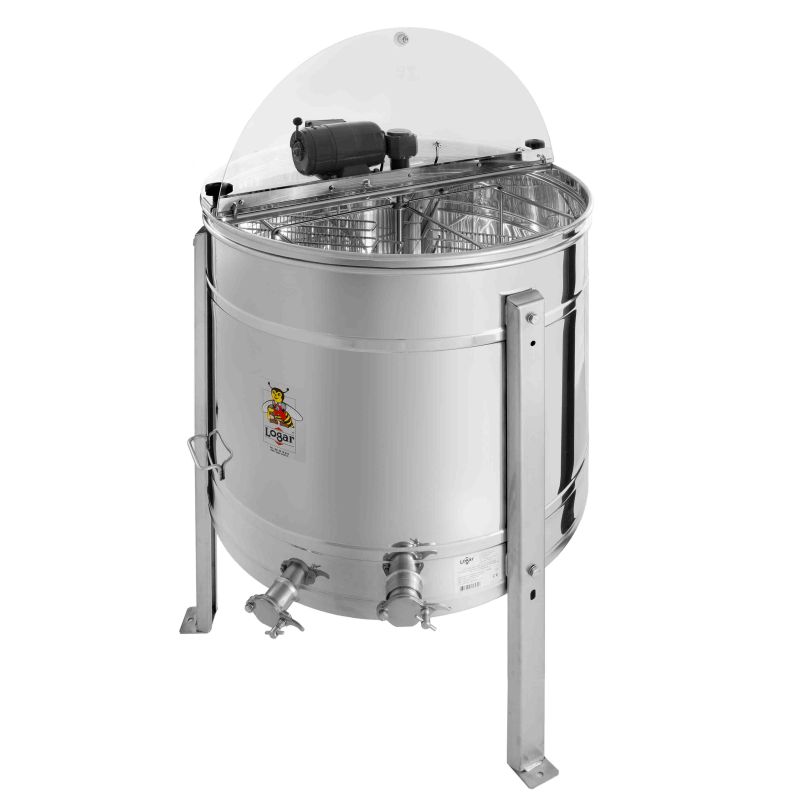

The 4 frames self-turning honey extractor is powered by an electric motor 110W / 230V with a safety switch which stops the motor if the lid of the extractor is opened. With the handle, the rotation speed from 0 to 280 rpm can be optionally chosen to the left or right. Modern technology enables the innovative manufacturing of the bottom of the extractor. The bottom of the extractor is welded without any inner edges and is inclined towards the tap. A welded stainless tap 6/4'' is built in at the lowest point so all the honey can drain out of the extractor. All parts of a honey extractor which come in contact with honey are made of materials appropriate for managing foods. The lid is made of transparent acrylic glass.

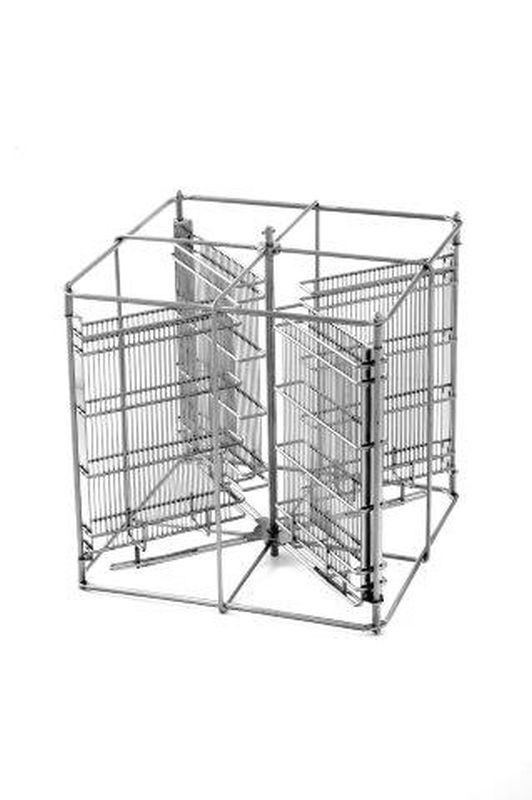

The basket cassettes are made of vertical wires of corresponding density, so the honeycomb is not damaged during the extraction. They are connected by a special mechanism. The wire cassette prevents the honey from being clogged in the cassette during the extraction. Therefore, the frames are dry after the extraction.

Enables extracting honey from beehive frame with the height up to 26,5 cm and the length of the upper bar of 48 cm.

Guarantee: 1 year
Type: LTM 4SS

Accessories:
- Bottom heating for extractor o 76 cm incl. assembly – our recommendation for a quicker extraction and filtering of honey and easier cleaning of the extractor, art. nr. 7125
- The 12V DC-230V AC, 300W (Art. 4626) converter enables the operation of the extractor with a 12V DC battery if an electrical supply of 230V is not available.
- By mounting rubber pads (Art. 7769) on the legs, the extractor will not slide so easily
  • Type of extractor: Self-turning extractor
  • Number of frames : 4/4
  • Drive: Motor 110W/230V
  • Diameter - inner/outer: 76 / 79 cm
  • Max frame size: 26,5 x 48 cm
  • Suitable for: AZ, Langstroth 1/1, Langstroth 2/3, Typ B, Gerstung, etc.
  • Cassette size: 27,5 x 40 x 4,5 cm
  • Height of drum without/with drive: 73 / 86 cm
  • Common height with legs / with drive: 112 / 125 cm
  • Height from ground to tap: 39 cm

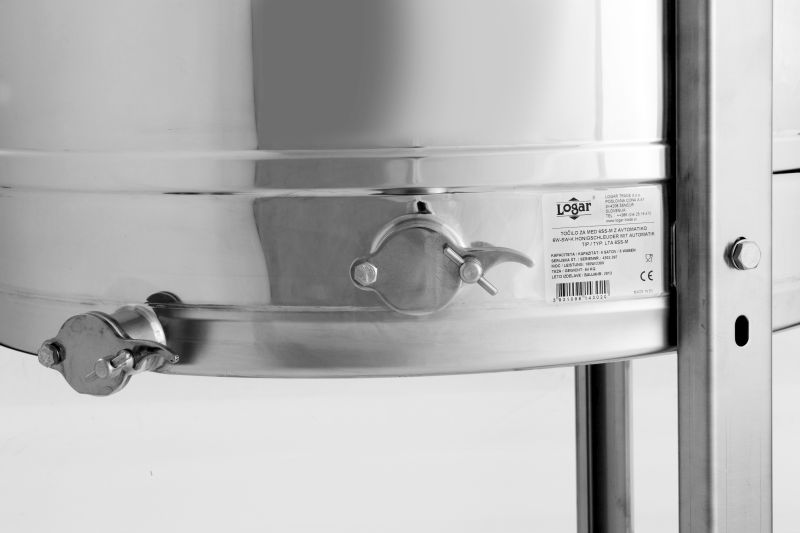

  • Taps / Ø: 1x Ø 38 mm + 1x Ø 42 mm
  • Tap: built in at the lowest point

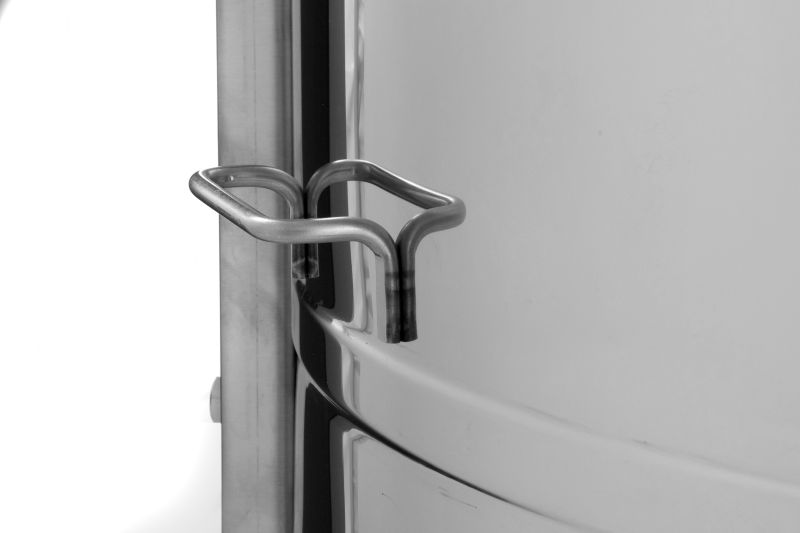

  • Handle: two side handles
  • Bottom: welded without any inner edges and inclined towards the tap
  • Material: Stainless steel W.Nr. 1.4301 / AISI 304
  • I: Made in Europe (Slovenia)
