Honey filling machine with 50 kg honey tank

Affordable semi-automatic honey filling system

Components:
- Filling system with weighing and control unit with colour display, servo mechanism, and power supply
- Honey tank 50 kg with inclined bottom
- Honey tipper with 3 levels

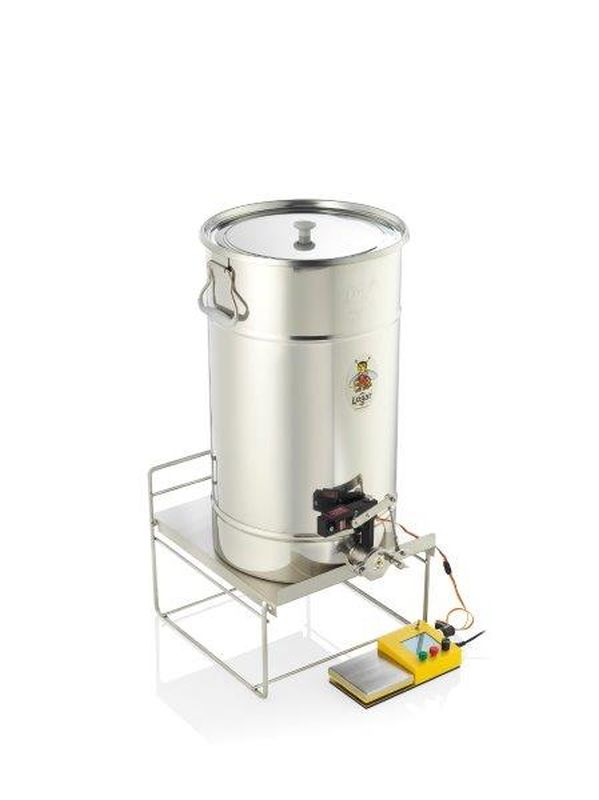

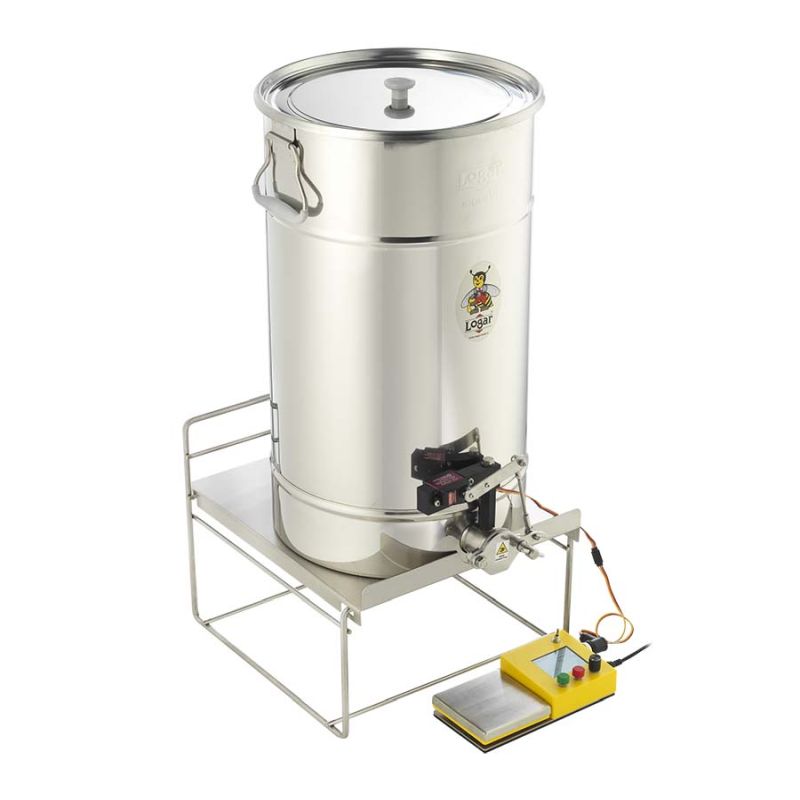

The filling system is mounted on our 50 kg honey tank with inclined bottom for easier flow. A servo motor, mounted on the outlet pipe, controls the closing of the honey gate. The honey filling machine is designed for semi-automatic filling of honey or other liquids with viscous consistency.

The filling process starts automatically when an empty jar is detected based on the stored tare value. The filling quantity is measured with a built-in external scale, electronically controlled. The filled jars are counted with a counter. The filling quantities can be set between 30 g and 2,000 g. Operation is via a 2.8'' colour monitor and an extensive setting menu. The filling process is completely hygienic and simple; constant monitoring of the outlet tap is not required. Users can close jar lids and apply labels while filling.

FILLING QUANTITIES: 30 - 2,000 g
FILLING ACCURACY: ± 5 g
OPERATING MODES: Manual / Automatic
DEVICE CONTROL MENU: also available in English

ADVANTAGES:
- Comprehensive menus with optional parameters:
glass type, outlet pipe opening angle, taring, tolerance (the amount set as surplus during filling to avoid filling less honey than indicated on the jar), counter, and other automatic functions.
- Due to the numerous optional parameters, the operation of the filling machine can be optimized at any time to suit the consistency of the honey.
- Pre-determination of five different types/styles of jars.
- Automatic start upon detection of a jar.
- Quick, hygienic, touchless switching between jars.
- Audible feedback.
- The filling machine allows the user a better time utilization.
During semi-automatic filling of a jar, the user can close the previous jar with a lid and label it.

The honey tank and the honey tipper are made of stainless-steel W. Nr. 1.4301/AISI 304.

Additional equipment:
- Hermetic lid with clamping ring
