Extractor 12F self-turning, programautomatic,double baskets,barrel 76

Product number: 4512
For the price please send us an enquiry

Type of extractor: Self-turning extractor
Number of frames : 0/12
Drive: Full automatic speed control 180 W/230 V
Diameter - inner/outer: 76 / 79 cm
Max frame size: 16,5 x 48 cm
Suitable for: Langstroth 2/3, DNM 2/3, Zander 2/3, Dadant US honeycomb , Dadant Blatt honeycomb
Cassette size: 17,5 x 44 x 4,5 cm
Tap: built in at the lowest point
Bottom: welded without any inner edges and inclined towards the tap
Material: Stainless steel W.Nr. 1.4301 / AISI 304
I: Made in Europe (Slovenia)

Cassette size: 17,5 x 44 x 4,5 cm
Drive: electric motor 180W/230V with full electronic speed control
The internal diameter of the barrel: 76 cm

Innovative self-turning honey extractor with double baskets – for extracting large numbers of low honeycombs on a small diameter.

The 12 frames self-turning honey extractor is powered by an electric motor 180W/230V with full electronic speed control and with a safety switch which stops the motor if the lid of the extractor is opened during the operation.

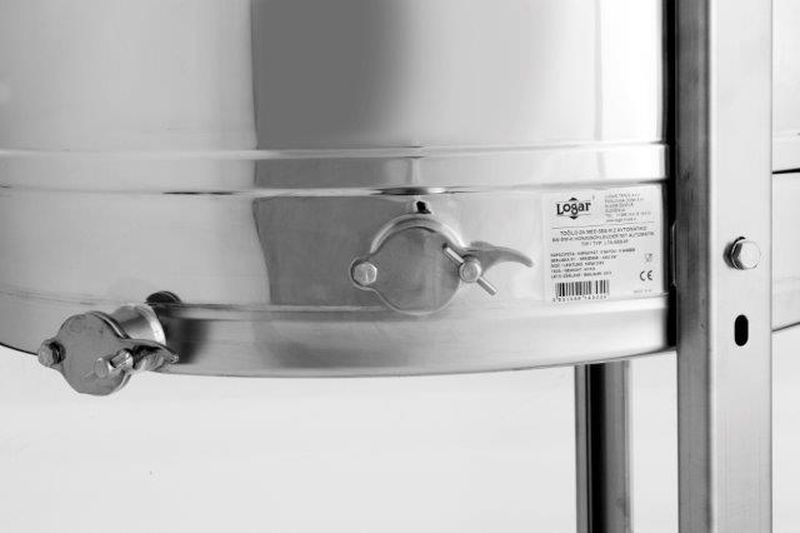

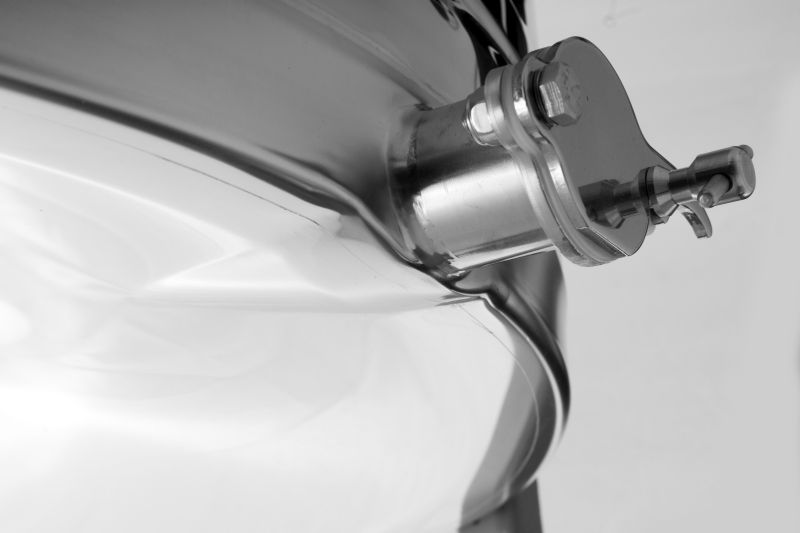

Modern technology enables the innovative manufacturing of the bottom of the extractor. The bottom of the extractor is welded without any inner edges and is inclined towards the tap. A welded stainless tap 6/4'' is built in at the lowest point so all the honey can drain out of the extractor. All parts of a honey extractor which come in contact with honey are made of materials appropriate for managing foods. The lid is made of transparent acrylic glass. The special construction of the legs ensures that the extractor is stable.

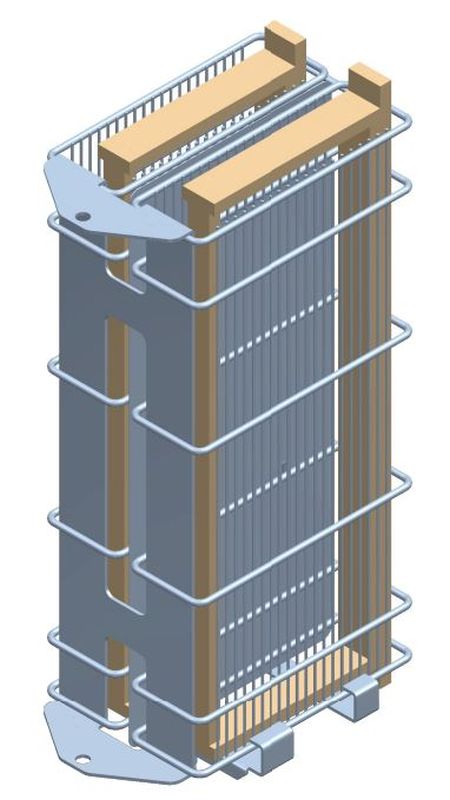

The cassettes in the extractor are double, and between them, there is a sheet metal part on which the honey drains. The basket cassettes are made of vertical wires of corresponding density, so the honeycomb is not damaged during the extraction. They are connected by a special mechanism. The wire cassette prevents the honey from being clogged in the cassette during the extraction. Therefore, the frames are dry after the extraction.

Enables extracting honey from 12 beehive frames with the height up to 16,5 cm and the length of the upper bar of 48 cm.

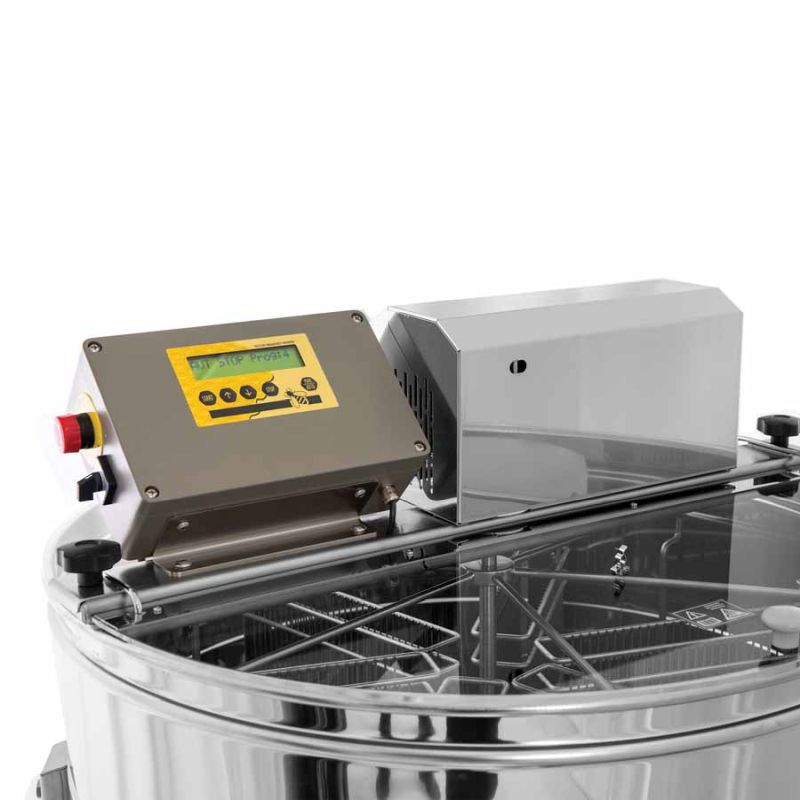

Automation enables the entire process of extraction independent, and the user can focus on other tasks during that time. Managing is simple using a digital two-line LCD display and a foil keyboard. Eight different programs can be set and saved. In each program, eight different times, directions and rotation speeds can be programmed. Basic extraction programs are already preset and can be changed any time, or new programs can be additionally set and saved. The extractor is silent, reliable and has a compact design.

Guarantee: 2 years
Type: LTA 12SSD

Accessories:
- Art. 7754, Rubber pads for extractor with screw M8 (set)
By mounting rubber pads on the extractor's legs, the extractor will not slide so easily.
- Art. 4627, Voltage converter 12V DC-230V AC, 600W
It enables the operation of the extractor with a 12V DC battery if the electrical supply (230 V) is not available on site.
- Substitute tangential basket with additional axle for extracting honeycombs that are up to 30 cm high.
  • Type of extractor: Self-turning extractor
  • Number of frames : 0/12
  • Drive: Full automatic speed control 180 W/230 V
  • Diameter - inner/outer: 76 / 79 cm
  • Max frame size: 16,5 x 48 cm
  • Suitable for: Langstroth 2/3, DNM 2/3, Zander 2/3, Dadant US honeycomb , Dadant Blatt honeycomb
  • Cassette size: 17,5 x 44 x 4,5 cm
  • Tap: built in at the lowest point
  • Bottom: welded without any inner edges and inclined towards the tap
  • Material: Stainless steel W.Nr. 1.4301 / AISI 304
  • I: Made in Europe (Slovenia)
